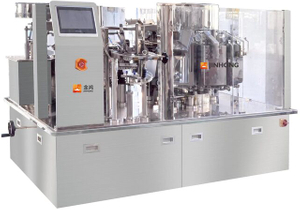

FULL AUTOMATIC ROTARY PRE-MADE BAG PACKAGING MACHINE

Share to:
It is applicable to the full automatic pre-made bag packaging of materials of various shapes, states and properties without vacuum. Such as solid particles: candy, chocolate, rice, coarse grain, nuts fried, etc; Liquid slurry powder agent, etc.
  • JINHONG
Availability:

Product Description




Product:

Solid particles: candy, chocolate, rice, coarse grain, nuts fried, etc; Liquid slurry powder agent, etc.


Technical Parameters:

Model
Output
Voltage
Power Weight Packaging Bag Dimension
Machine Dimension
JH-G100 40-90 packs/min 380V/50Hz
4 kW
1000 kg Length 60-180 mm/ Width 55-100 mm 2050*1560*1600 mm
JH-G160 50-90 packs/min 380V/50Hz 4.5 kW 1000 kg Length 100-300 mm/ Width 60-160 mm 2050*1600*1600 mm
JH-G230 35-60 packs/min 380V/50Hz 4 kW 1500 kg Length 100-300 mm/ Width 90-230 mm 2050*1700*1600 mm
JH-G300 10-30 packs/min 380V/50Hz 4.5 kW 2000 kg Length 100-300 mm/ Width 160-300 mm 2100*1700*1700 mm
JH-G380 10-30 packs/min 380V/50Hz 4.5 kW 2000 kg Length 200-500 mm/ Width 240-380 mm 2100*1700*1700 mm


Machine Design:

√ Stainless steel appearance, high-grade equipment, stable operation. It replaces manual packaging, improves production efficiency and greatly reduces production costs.

√ It adopts PLC control and touch screen operation, with a wide range of applications, and can set the operating speed according to the demand of production capacity.

√ Quickly change the specifications of the packaging bag, which can be easily and quickly adjusted through the adjusting handle.

√ Automatic detection function, if the bag is not opened or the bag is not completely opened, the equipment will not feed and heat seal, and the bag can be reused without wasting packaging materials and raw materials.

√ Be suitable for self-standing bag, handbags, zipper bags, four-sided sealing bags, three-sided sealing bags, paper bags, M-shaped bags and other composite bags.

√ It can automatically complete the functions of bag suction, date printing, bag opening, feeding, sealing and finished product output.

√ It can be integrated with multi-head computer combined scale, screw scale, filling machine, screw elevator, granulator, Z-type elevator, etc


Benefits:

√ Excellent package and sealing quality

√ High performance and high efficiency

√ Easy for cleaning and maintenance

√ Easy operation and high operational safety

√ Excellent hygiene standards
